CIC CABLE
PRODUCT DESCRIPTION
By integrating the cable and conduit in continuous lengths on reels, CIC eliminates the separate field steps of conduit placement and cable pulling — reducing installation labor, protecting conductors from day one, and accelerating project timelines for underground secondary distribution.
Standards
ASTM D3485 · ASTM F2160 · UL 1990 · UL 854 · ASTM D3350 · NEMA TC-7
Conductor
Concentric stranded, compressed 1350-H19 aluminum · XLPE insulated · Rated 90°C wet/dry · 600V
Conduit
Smooth-walled, coilable High-Density Polyethylene (HDPE) · Extruded continuously around the cable assembly in long lengths and spooled on reels · Cables lubricated for easy field replacement if needed.
Installation
Direct burial or encased in concrete per NEC Article 353
Standards
ASTM D3485 · ASTM F2160 · UL 1990 · UL 854 · ASTM D3350 · NEMA TC-7
Conductor
Concentric stranded, compressed 1350-H19 aluminum · XLPE insulated · Rated 90°C wet/dry · 600V
Conduit
Smooth-walled, coilable High-Density Polyethylene (HDPE) · Extruded continuously around the cable assembly in long lengths and spooled on reels · Cables lubricated for easy field replacement if needed.
Installation
Direct burial or encased in concrete per NEC Article 353
-

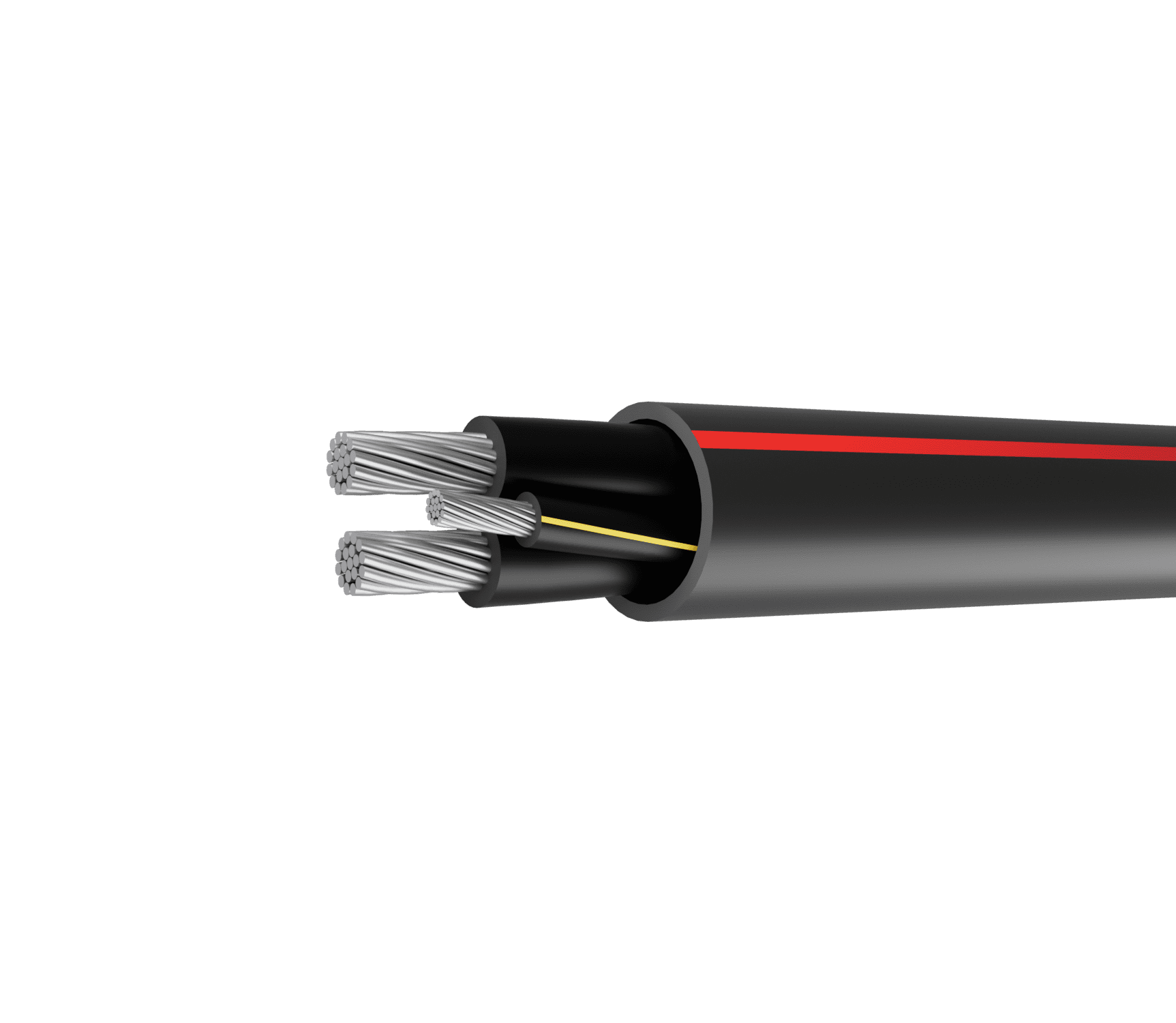

TRIPLEX CIC -
DESCRIPTIONTwo XLPE-insulated aluminum phase conductors and one neutral — assembled as a standard triplex URD cable, then factory-enclosed in a coilable HDPE conduit. Arrives on the jobsite as a single, ready-to-trench system with no field pull required.
-
APPLICATIONSUnderground secondary distribution for commercial construction, utility, renewables, and agriculture irrigation. The preferred configuration for single-phase, three-wire underground residential and light commercial service where labor efficiency and conductor protection are priorities. Install by direct burial or concrete encasement per NEC Article 353.
-

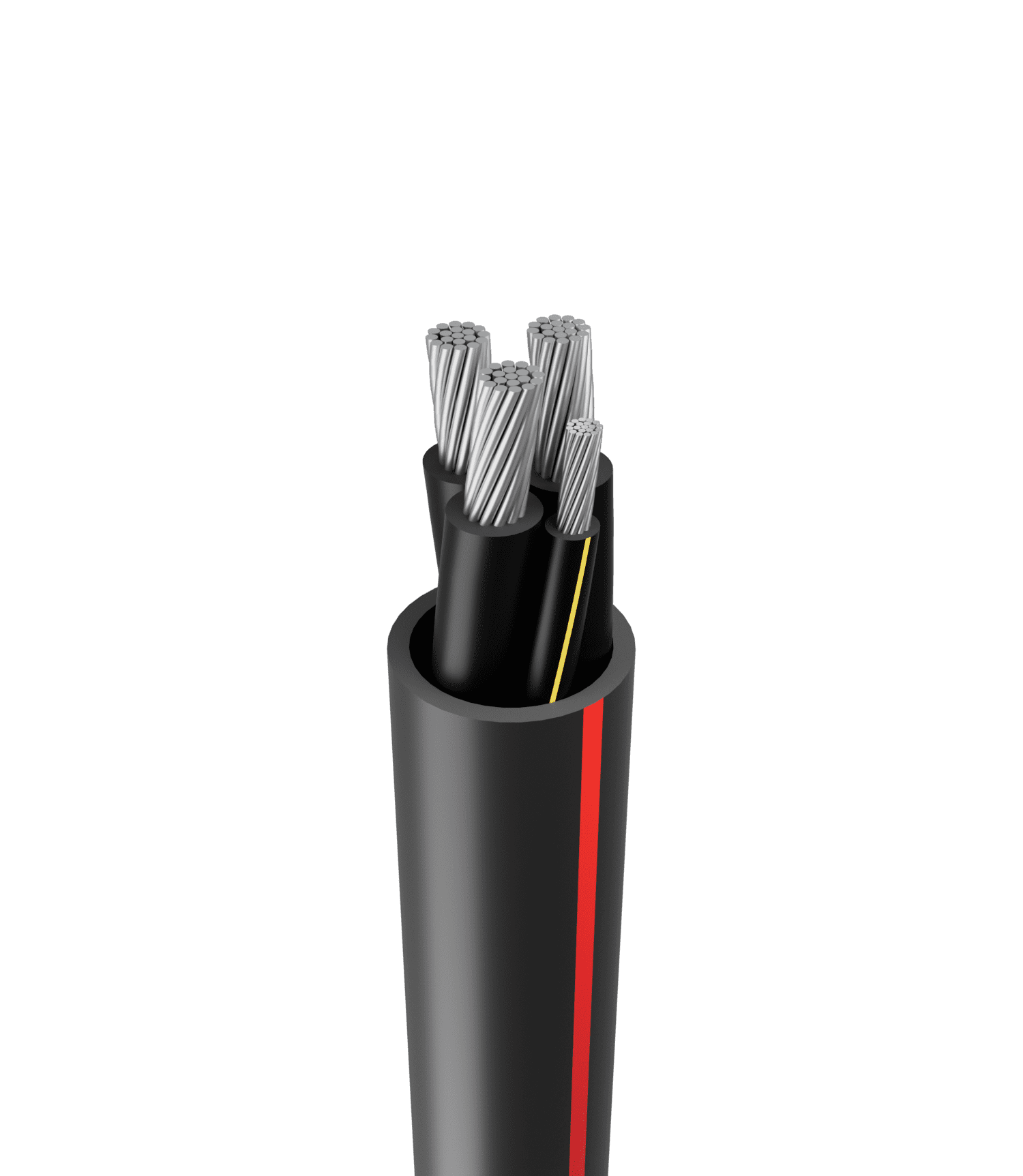

QUADRUPLEX CIC
-
DESCRIPTIONThree XLPE-insulated aluminum phase conductors and one neutral — pre-assembled as a quadruplex URD cable inside a factory-extruded HDPE conduit. Delivers a complete four-wire underground system in a single trench-and-lay operation, eliminating three-phase field pulls entirely.
-
ApplicationSThree-phase underground service for commercial buildings, data centers, agricultural irrigation, and utility distribution projects. Ideal where three-phase capacity is needed and minimizing field labor or protecting conductors through difficult soil and trench conditions is critical. Rated 600V, direct burial or concrete encasement per NEC Article 353.
