SER CABLE
PRODUCT DESCRIPTION

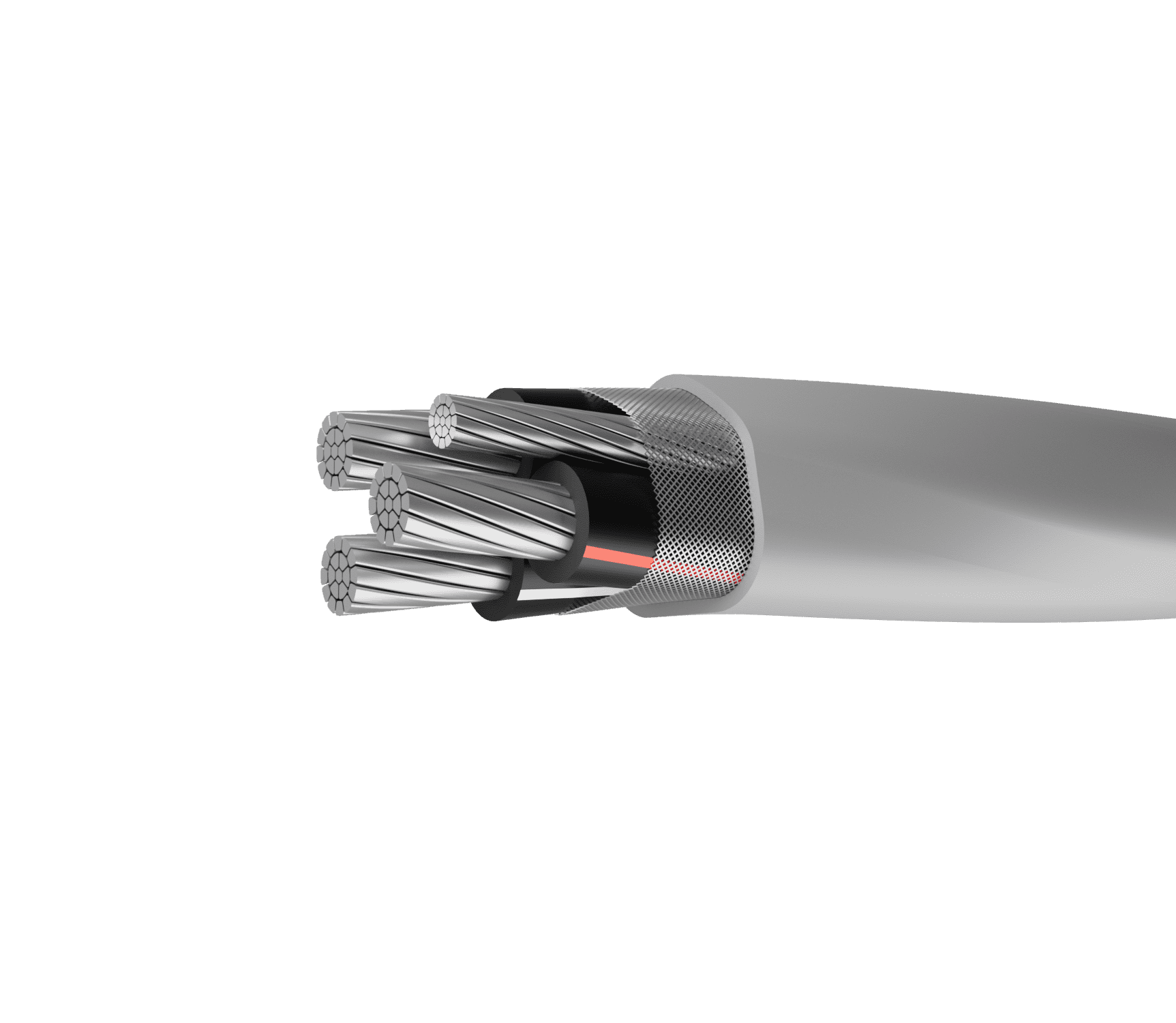

Built with compact-stranded AA-8000 series aluminum alloy conductors insulated with XLPE and jacketed in a sunlight-resistant gray PVC, it delivers reliable power from the service drop to the meter base and from the meter base to the distribution panelboard — in a single, code-compliant package.
Standards
UL 44 · UL 854 · ASTM B-258 · B-800 · B-801 · NEC NFPA 70 · Federal Specification A-A-59544 (JC-30B NEC)
Conductor
Compact-stranded AA-8000 series aluminum alloy, Class B stranding per ASTM B800 & B801
Insulation
Moisture and heat resistant XLPE · Single conductors UL Listed Type XHHW-2 · 90°C wet and dry locations · 600V
Assembly
Insulated conductors cabled with bare ground wire · Flame-retardant fiberglass reinforced binder tape assembles core in circular configuration
Jacket
Sunlight resistant, flame-retardant gray PVC · Sequential footage markings
Conductor Identification
3-conductor: Black · Black/Triple Red Stripe · Black/Triple White Stripe
Standards
UL 44 · UL 854 · ASTM B-258 · B-800 · B-801 · NEC NFPA 70 · Federal Specification A-A-59544 (JC-30B NEC)
Conductor
Compact-stranded AA-8000 series aluminum alloy, Class B stranding per ASTM B800 & B801
Insulation
Moisture and heat resistant XLPE · Single conductors UL Listed Type XHHW-2 · 90°C wet and dry locations · 600V
Assembly
Insulated conductors cabled with bare ground wire · Flame-retardant fiberglass reinforced binder tape assembles core in circular configuration
Jacket
Sunlight resistant, flame-retardant gray PVC · Sequential footage markings
Conductor Identification
3-conductor: Black · Black/Triple Red Stripe · Black/Triple White Stripe
-
SER CABLE -
DESCRIPTIONLegacy Wire’s aluminum SER (Service Entrance Cable, Style R) is the standard solution for above-ground service entrance wiring rated up to 600V. Built with compact-stranded AA-8000 series aluminum alloy conductors insulated with XLPE and jacketed in a sunlight-resistant gray PVC, it delivers reliable power from the service drop to the meter base and from the meter base to the distribution panelboard — in a single, code-compliant package.
-
APPLICATIONSSER is used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. It may be used in other branch circuits, feeders, or any application where Type SE cable is permitted by the NEC. Common installations include main panel feeds and subpanel feeds for residential, multi-family, and light commercial buildings, as well as power distribution to HVAC systems, electric water heaters, and other high-load appliances. Rated 600V, not to exceed 90°C in wet or dry locations.
