URD CABLE
PRODUCT DESCRIPTION
Built with concentric-stranded 1350-H19 aluminum conductors and cross-linked polyethylene (XLPE) insulation, it delivers proven performance in direct burial, conduit, and duct installations rated up to 600V. Moisture-resistant, sunlight-resistant, and rated for 90°C continuous operation — built to last underground.
Standards
ASTM B-230 / B-231 · ICEA S-105-692 · UL 854 (Type USE-2)
Conductor
Concentric stranded, compressed 1350-H19 aluminum
Insulation
XLPE — 90°C wet/dry · 130°C emergency overload · 250°C short circuit
Neutral: Black XLPE with yellow stripe
Standards
ASTM B-230 / B-231 · ICEA S-105-692 · UL 854 (Type USE-2)
Conductor
Concentric stranded, compressed 1350-H19 aluminum
Insulation
XLPE — 90°C wet/dry · 130°C emergency overload · 250°C short circuit
Neutral: Black XLPE with yellow stripe
-

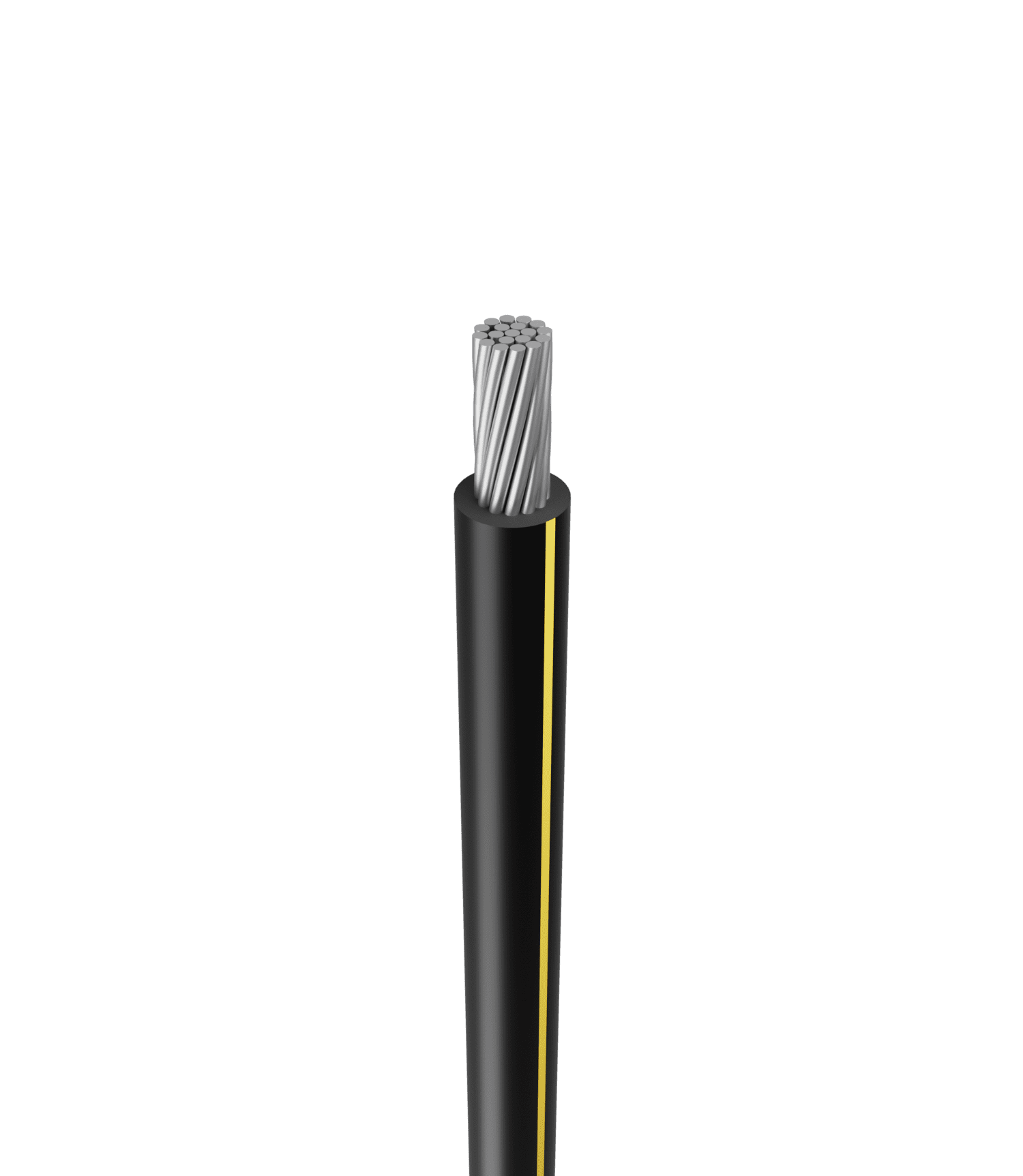

Single CONDUCTOR -
DescriptionA single aluminum conductor with XLPE insulation — the versatile building block for custom underground distribution assemblies. Ideal where conductors must be pulled and terminated independently.
-
APPLICATIONSDirect burial, conduit, or duct installations for underground service entrances and general-purpose power circuits up to 600V. Wet or dry locations per NEC and non-NEC requirements.
-

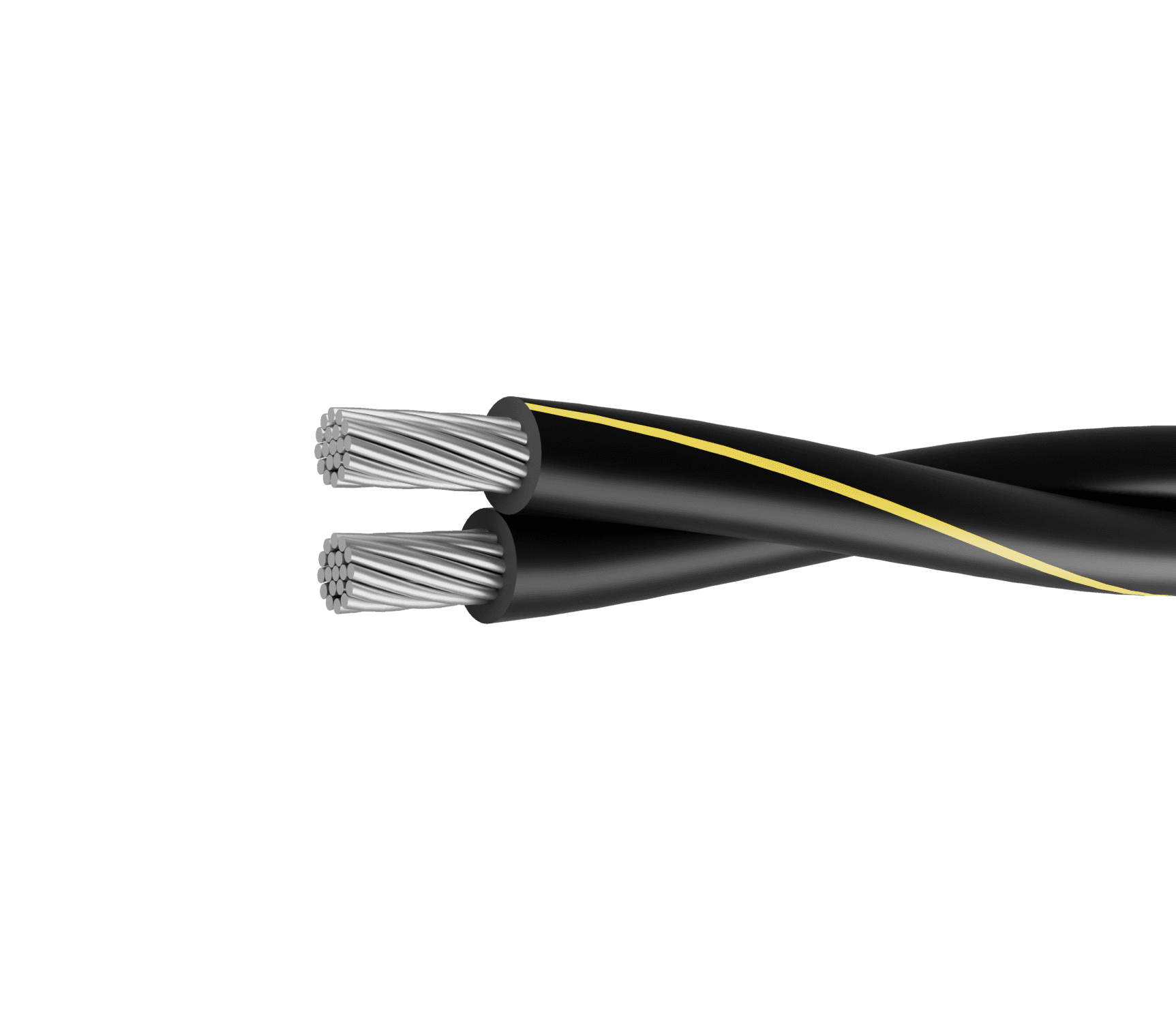

DUPLEX URD
-
DESCRIPTIONTwo XLPE-insulated aluminum conductors — one phase, one neutral — helically twisted into a compact two-conductor assembly. Simplifies single-phase underground service runs with a single pull.
-
APPLICATIONSSingle-phase underground service entrance applications for residential and light commercial properties. Designed for direct burial or installation in conduit/duct systems rated up to 600V. Wet or dry locations per NEC and non-NEC requirements.
-

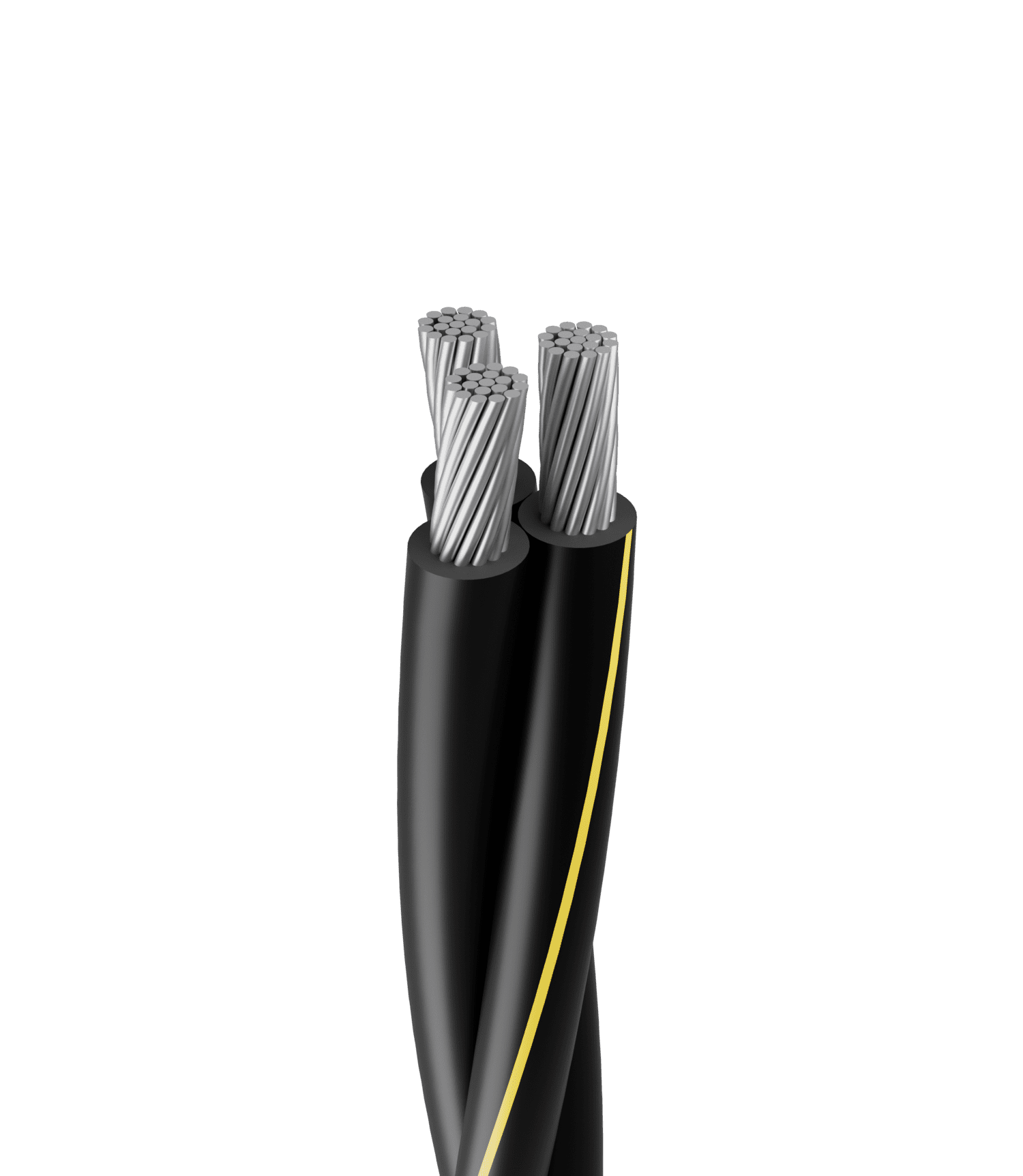

TRIPLEX URD
-
DESCRIPTIONThree XLPE-insulated aluminum conductors — two phase conductors and one neutral — twisted together for efficient single-phase, three-wire underground distribution. The industry standard configuration for residential underground service.
-
APPLICATIONSUnderground service entrance wiring for single-phase residential applications. Commonly used by utilities and electrical contractors for the last segment of underground distribution from transformer to meter base. Suitable for direct burial, conduit, or duct — up to 600V per NEC and utility specifications. Wet or dry locations per NEC and non-NEC requirements.
-

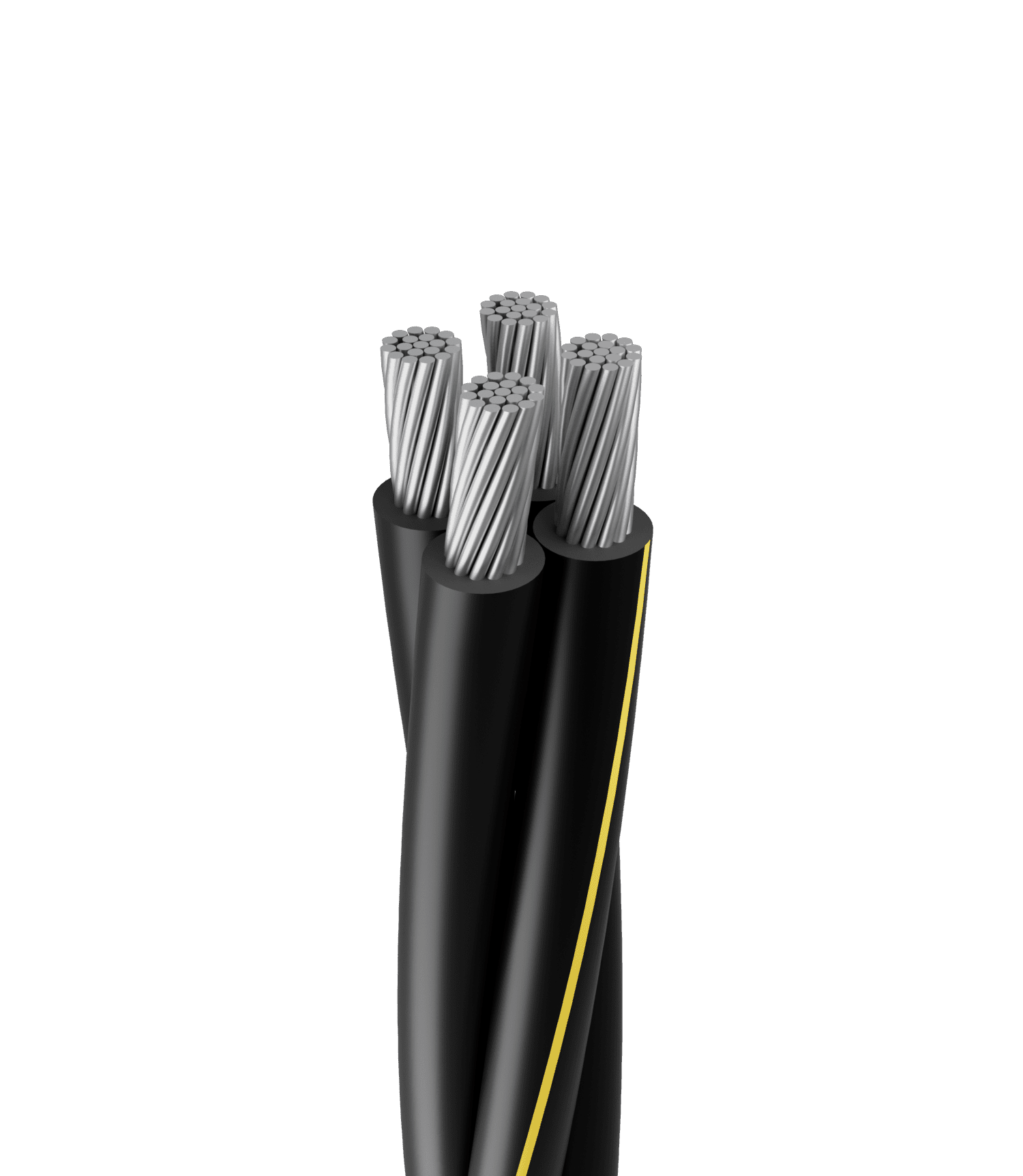

QUADRUPLEX URD
-
DESCRIPTIONFour XLPE-insulated aluminum conductors — three phase conductors and one neutral — twisted into a single assembly for three-phase underground power delivery. Provides a clean, single-pull solution for heavier commercial and multi-family loads.
-
APPLICATIONSThree-phase underground service entrance and secondary distribution for commercial buildings, multi-family developments, and industrial facilities. Rated up to 600V for direct burial or installation in conduit/duct systems.
